Allaoleva teksti on otettu 12,7x99mm, Mk 211 Raufoss-ammuksen facebook-sivustolta:
The multipurpose name is based on the projectile having an armor-piercing (tungsten core), an explosive, and an incendiary component, thus making it capable of penetrating lightly armored targets and causing damage to personnel inside the target after penetration. It is a suitable round for engaging helicopters, aircraft and lightly armored vehicles, as well as unarmored vehicles, and it has the capability of igniting jet fuel. The Mk.211 has about the same destructive power as a standard 20 mm round against such targets.
http://guns.wikia.com/wiki/MK211_RAUFOSS (ja SLAP)
Global security says this round can penetrate around 11mm of RHA at 1000m on a 45 degree angle. Other results suggest it could penetrate 50mm of RHA but did not state the distance. Nammo studies say it can penetrate half an inch at around 1,000m. With the M2 browning machinegun it's effectiveness is increased with a larger rate of fire and a flatter trajectory.
One inch thick RHA - API penetrated but did not continue through, the SLAP round exited completely through - this gives you an idea of the penetrability capabilities of the SLAP round when comparing it with the MK211 - and also what the tungsten penetrator can do.
In the heavy-armor bullet hole the jacket and steel shell body are stripped off the penetrator, which continues into and through the armor. In this kind of target nearly all of the blast, fragmentation and incendiary effect stays in front of the target. The penetrator goes through the armor without eroding.
When confronted with heavy armor such as hardened steel of more than an inch, the effect is as follows: The jacket and shell body material has melted together with and into the armor and form a ring round the hole from the penetrator. The diameter of the hole is the same as the penetrator itself, 7mm.
The penetrator will, in most cases, break up in the moment it passes the armor, and together with fragments from the armor itself, give significant post armor effect. The velocity on these fragments behind a 22mm armor plate at a distance of 100 meters will be between 200 and 400 meters per second, and some of the fragments have the energy to penetrate a 1.5mm steel plate. This means that after the tungsten carbide penetrator passes though the barrier or vehicle, you still have several supersonic fragments capable of considerable ricochet if going into enclosed areas.

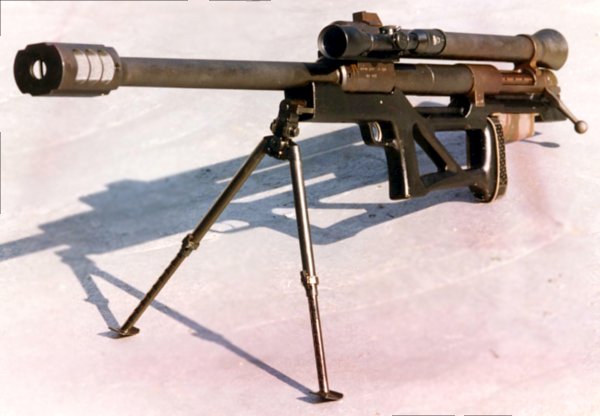

Ei tuo 12,7mm AMR-kivääri ihan lelu ole edes BMP-2 tyyppistä maalia vastaan. Meilläpäin ampumaetäisyydet jäänee alle kilometriin, usein reilusti alle, joten tuolla patruunalla on reilusti tehoa takana.
Minusta tuo AMR-konsepti ei ole ihan huono nimenomaan jos laitetaan vaakakuppiin liikkuvuus ja 50 cal.tulivoima.
AMR-kivääri on tarkka materiaalimaaleihin jopa 1000 m matkalta ja MK 211 ammuksella (tarkin 12,7x99mm ammus monien mielestä) riittävän tarkka myös henkilömaaleihin.
Ase on paljon kevyempi kantaa kuin NSV, huomattavasti nopeampi poistua asemasta. Koska se on tarkempi, kuluttaa ammuksia vähemmän=vähemmän kannettavaa ja tarvitsee vain 2 miestä. Itselataava häviää tarkkuudessa pulttilukkoiselle kiväärille mutta antaa kevyemmän rekyylin noin kovan paukun kanssa, on nopeampi ampua useita osumia APC / AFV-vaunuun. Eräs tuttavani ampui Barretilla ruotsissa ja oli vaikuttunut siitä miten hän ensikertalaisena sai useita osumia ajoneuvo-maaliin yli 500 m päästä nopealla tulella.
Eihän AMR kivääri missään nimessä sinkoja korvaa, sitä ei väitä kukaan, vaan toisi lisävälineen jalkaväelle sekä pehmeiden että puolikovien maalien torjuntaan sinkoa pidemmillä etäisyyksillä (joka puuttuu nyt täysin). AMR-kivääri pystyisi auttamaan jalkaväkeä myös tehokkaasti urbaanisodankäynnissä, koska sillä voi ampua vankkojen rakenteiden läpi (teräsbetoniseinä, hiekkasäkit) ja tuhota vihollispesäkkeitä.
Mielenkiintoinen kokeellinen Springfield Armsin Tround 50 cal. konekivääri. Kokeessa ammutaan Mk 211 Raufoss-ammusta eri kohteisiin.
