Pidetääns tätäkin ketjua hengissä.
BMO-T. Jostain syystä venäläiset ovat nähneet hyväksi tehdä erillisen raskaan miehistönkuljetuspanssarin liekinheitinryhmille. Näitä vaunuja, jotka ovat 7-72:een perustuvia, on tehty vain pieni määrä. En löytänyt tarkempaa lukua.
Ryhmä miehiä ja 32 kpl RPO-sarjan liekinheitinsinkoja plus kaksi kuskia.

Tuossa edellä käytiin teknis-tieteellistä keskustelua metallin palamisesta. Tämän jos saa täydellä sisävarustuksella tuleen, niin roihu on taattu. Yksikin RPO-ammus roihahtaa videoiden perusteella aika mukavasti, puhumattakaan kun 32 syttyy kerralla ;).

http://www.military-today.com/apc/bmo_t.htm

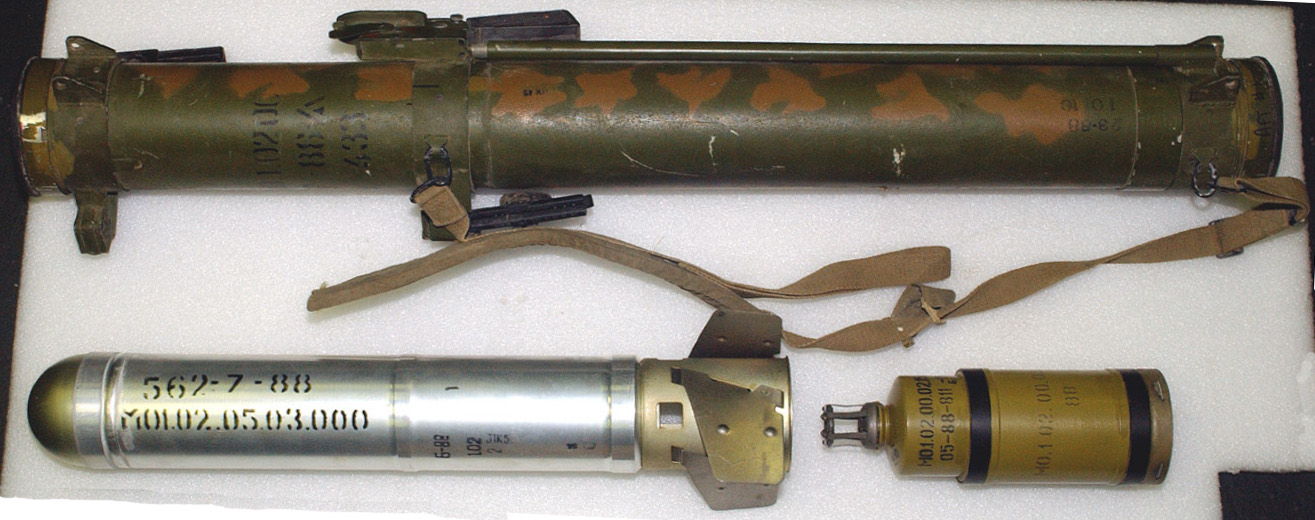

Näistähän meillä olikin jo ketjun alussa juttua. Pirullinen vehje.
https://en.wikipedia.org/wiki/RPO-A_Shmel



Tossa Liettualainen sivu, jossa tarkempaa tietoa. Kun vetää kääntäjästä läpi, saa aikaa selkeää englantia venäjän sijaan.

http://www.topic.lt/miru_mir/48033-boevaja-mashina-ognemetchikov.html

Hyvää sisältöä! Tekstiosuus jotakuinkin samaa kuin englanninkielisissä lähteissä, mutta leikkauskuvat kannattaa käydä tsekkaamassa. Niitä on todella runsaasti.
Tämä esimerkiksi: polttoainetankit ovat nro 52 ja 53.



Löytyi vielä tietoa, siitä, että näitä on sijoitettu kahteen yksikköön.

Ensimmäinen on
6-я отдельная танковая бригада,
joka on siitä mielenkiintoinen, että osia siitä toimii myös Ukrainan Donbassissa.

Toinen
1-я мобильная бригада РХБЗ,
Nykyisin sijoitettuna suljettuun Шиханы'n sotilaskaupunkiin Saratovin läänissä.

Löytyi vielä tietoa, siitä, että näitä on sijoitettu kahteen yksikköön.

Ensimmäinen on
6-я отдельная танковая бригада,
joka on siitä mielenkiintoinen, että osia siitä toimii myös Ukrainan Donbassissa.

Toinen
1-я мобильная бригада РХБЗ,
Nykyisin sijoitettuna suljettuun Шиханы'n sotilaskaupunkiin Saratovin läänissä.
Vahvistaa siis sitä tietoa, että ei noita kovin montaa ole tehty. Puhutaan varmaan muutamista kymmenistä korkeintaan.

Tulipa sellainenkin mieleen, että huomenna säie täyttää vuoden. Ja kohta 33.000 katsomiskertaa. Ei pöllömpää, ja itse olen hieman ihmeissäni siitä. En odottanut tosiaankaan, että aihe kiinnostaa näinkin paljon.

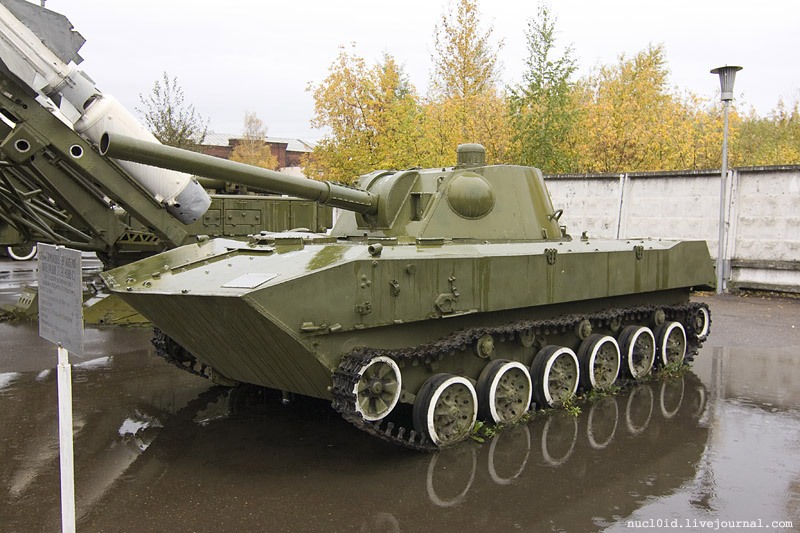

2S9 Nona-S.
BMD-1 -> BTR-D -> 2S9 Nona-S. Eli alkuperäinen ilmakuljetettava sardiinipurkki taipuu moneksi. 120 millin heittimellä ja normikookoolla aseistettuja vaunuja on tätä nykyä käytössä 278-500 kpl lähteestä riippuen.
Voidaan käyttää epäsuoraan ja suoraan ammuntaan. Täyttö 25 ammusta. 4 hengen miehistö.
2S9-1 Sviristelka, variant of the 2S9, developed for naval infantry units. Its ammunition load was increased to 40 rounds.




http://www.military-today.com/artillery/2s9_nona_s.htm

Kohdasta 1:40 alkaen latausproseduuria. Lisää murkulaa syotetään takaa luukusta kourua pitkin, jos täyttö loppuu. Vaan mikä on tuo valkoinen rätinomainen systeemi siinä?


TOS-1/A
Aika tunnistettavissa oleva järjestelmä.
Tukee hyökkäävää jalkaväkeä ja panssarivaunuja ja yleensä sijoittuna suhteellisen lähelle kärkeä.
Varmasti pirullinen peli ja nähnyt käyttöä niin irakissa kuin Syyriassakin



Entered service 2001
Crew 3 men
Dimensions and weight
Weight 44.3 t
Length 7.24 m
Width 3.58 m
Height 3.07 m
Armament
Caliber 220-mm
Number of tubes 24
Rocket weight 173 or 217 kg
Warhead weight 45 kg
Firing range 0.4 - 6 km
Full salvo duration 6 / 12 s
Reloading time ?
Mobility
Engine V-84MS diesel
Engine power 840 hp
Maximum road speed 60 km/h
Range 550 km
Maneuverability
Gradient 60%
Side slope 40%
Vertical step 0.85 m
Trench 2.6 - 2.8 m
Fording 1.2 m


The TOS-1A is the latest version of the original TOS-1heavy flamethrower system. It was adopted by the Russian Army in 2001. The TOS-1A was used by the Russian Army in Chechnya. This heavy flamethrower system has been exported to Azerbaijan (18), Iraq (4) and Kazakhstan (3). Iraqi systems have seen combat during the fights with Islamic State fighters. It seems that the TOS-1A has also been exported to Syria, where it has seen combat during the Syrian Civil War.

The TOS-1A heavy flamethrower system is intended for direct fire support of advancing infantry and main battle tanks, and moves in their combat orders. It is designed to engage military personnel, fortifications and light armored vehicles. The heavy flamethrower system is generally similar to multiple launch rocket systems, however it fires different types of rockets and has a shorter firing range.

The main element of the TOS-1A system is the BM-1 launch vehicle. A number of launching tubes was reduced from 30 to 24, arranged in three rows of eight tubes each. New launching tubes are longer in comparison with the previous heavy flamethrower system. There are at least two types of 220-mm rockets. These are 3.3 and 3.7 m long and weight 173 and 217 kg respectively. The TOS-1A uses longer rockets and has a longer range than its predecessor. Maximum range of fire was increased to 6 000 m. Minimum range is 400 m.

There are at least two types of warheads - incendiary and thermobaric. The thermobaric weapons are also called vacuum or fuel-air explosives. This type of munitions releases a large cloud of flammable gas and causes massive explosions. It is used to clear out bunkers and other fortifications. The TOS-1A heavy flamethrower system launches a single rocket, or a pair of two rockets within 0.5 s. Full salvo duration is 12 and 6 seconds in automatic mode respectively.

The BM-1 launching vehicle has a crew of three, including commander, gunner and driver. It is fitted with a modern fire control system. All guidance and firing procedures are made from the inside of the vehicle, without exposing crew to enemy fire. The launcher vehicle is prepared for firing at a visible target within 90 seconds.

The TOS-1A launcher is mounted on a modified T-72A main battle tank chassis. Vehicle is powered by a V-84MS diesel engine, developing 840 hp. It is fitted with a self-entrenching blade. Armor protection of this system is similar to that of the T-72A MBT.

This heavy flamethrower is supported by a new TZM-T reloading vehicle, which is used to transport and reload rockets. It carries a full set of reload rockets in two pods for 12 rockets each. A crane is mounted between these units. Reloading vehicle also carries 400 liters of fuel for the BM-1 launch vehicle. The TZM-T is operated by a crew of three.

Also recently appeared a reloading vehicle, based on KamAZ-6350 8x8 truck. It also carries two pods of reload rockets with a crane mounted in between.


tos_1a.jpg tos_1a_l3.jpg tos_1a_l1.jpg

Jos taittuu pataluska po Ruski. niin:

Videolla näkyi (2:25) hyvin kuinka helppoa ja nopeaa BMP3;sta on jalkautua. Suorastaan eleganttia:p

TOS-1/A
Aika tunnistettavissa oleva järjestelmä.
Tukee hyökkäävää jalkaväkeä ja panssarivaunuja ja yleensä sijoittuna suhteellisen lähelle kärkeä.
Varmasti pirullinen peli ja nähnyt käyttöä niin irakissa kuin Syyriassakin



Entered service 2001
Crew 3 men
Dimensions and weight
Weight 44.3 t
Length 7.24 m
Width 3.58 m
Height 3.07 m
Armament
Caliber 220-mm
Number of tubes 24
Rocket weight 173 or 217 kg
Warhead weight 45 kg
Firing range 0.4 - 6 km
Full salvo duration 6 / 12 s
Reloading time ?
Mobility
Engine V-84MS diesel
Engine power 840 hp
Maximum road speed 60 km/h
Range 550 km
Maneuverability
Gradient 60%
Side slope 40%
Vertical step 0.85 m
Trench 2.6 - 2.8 m
Fording 1.2 m


The TOS-1A is the latest version of the original TOS-1heavy flamethrower system. It was adopted by the Russian Army in 2001. The TOS-1A was used by the Russian Army in Chechnya. This heavy flamethrower system has been exported to Azerbaijan (18), Iraq (4) and Kazakhstan (3). Iraqi systems have seen combat during the fights with Islamic State fighters. It seems that the TOS-1A has also been exported to Syria, where it has seen combat during the Syrian Civil War.

The TOS-1A heavy flamethrower system is intended for direct fire support of advancing infantry and main battle tanks, and moves in their combat orders. It is designed to engage military personnel, fortifications and light armored vehicles. The heavy flamethrower system is generally similar to multiple launch rocket systems, however it fires different types of rockets and has a shorter firing range.

The main element of the TOS-1A system is the BM-1 launch vehicle. A number of launching tubes was reduced from 30 to 24, arranged in three rows of eight tubes each. New launching tubes are longer in comparison with the previous heavy flamethrower system. There are at least two types of 220-mm rockets. These are 3.3 and 3.7 m long and weight 173 and 217 kg respectively. The TOS-1A uses longer rockets and has a longer range than its predecessor. Maximum range of fire was increased to 6 000 m. Minimum range is 400 m.

There are at least two types of warheads - incendiary and thermobaric. The thermobaric weapons are also called vacuum or fuel-air explosives. This type of munitions releases a large cloud of flammable gas and causes massive explosions. It is used to clear out bunkers and other fortifications. The TOS-1A heavy flamethrower system launches a single rocket, or a pair of two rockets within 0.5 s. Full salvo duration is 12 and 6 seconds in automatic mode respectively.

The BM-1 launching vehicle has a crew of three, including commander, gunner and driver. It is fitted with a modern fire control system. All guidance and firing procedures are made from the inside of the vehicle, without exposing crew to enemy fire. The launcher vehicle is prepared for firing at a visible target within 90 seconds.

The TOS-1A launcher is mounted on a modified T-72A main battle tank chassis. Vehicle is powered by a V-84MS diesel engine, developing 840 hp. It is fitted with a self-entrenching blade. Armor protection of this system is similar to that of the T-72A MBT.

This heavy flamethrower is supported by a new TZM-T reloading vehicle, which is used to transport and reload rockets. It carries a full set of reload rockets in two pods for 12 rockets each. A crane is mounted between these units. Reloading vehicle also carries 400 liters of fuel for the BM-1 launch vehicle. The TZM-T is operated by a crew of three.

Also recently appeared a reloading vehicle, based on KamAZ-6350 8x8 truck. It also carries two pods of reload rockets with a crane mounted in between.


Katso liite: 8435 Katso liite: 8436 Katso liite: 8437

Jos taittuu pataluska po Ruski. niin:
Löysitkö tarkennusta lukumääriin? Wikipedia sanoo 15 kpl ja toinen lähde 24 kpl valmistusmääriksi. Jos näin, jännä että azerit ovat innostuneet hankkimaan noinkin monta (18).

Some sources have indicated that as few as 24 TOS-1 'Fighting Vehicle' systems were manufactured with a small number of these having been deployed to Chechnya in 1999/2000 where they are claimed to have been very useful in urban fighting.
http://www.army-guide.com/eng/product1246.html

[URL='http://maanpuolustus.net/threads/sotasaalisaseet-ja-niiden-k%C3%A4ytt%C3%B6%C3%B6notto.4194/page-19#post-327130']Sotasaalisaseet ja niiden käyttöönotto[/URL]
[URL='http://[URL="http://maanpuolustus.net/threads/sotasaalisaseet-ja-niiden-k%C3%A4ytt%C3%B6%C3%B6notto.4194/page-19#post-327130"]Sotasaalisaseet ja niiden käyttöönotto[/URL]'][URL='http://[URL="http://maanpuolustus.net/threads/sotasaalisaseet-ja-niiden-k%C3%A4ytt%C3%B6%C3%B6notto.4194/page-19#post-327130"]Sotasaalisaseet ja niiden käyttöönotto[/URL]'][URL='http://[URL="http://maanpuolustus.net/threads/sotasaalisaseet-ja-niiden-k%C3%A4ytt%C3%B6%C3%B6notto.4194/page-19#post-327130"]Sotasaalisaseet ja niiden käyttöönotto[/URL]']Sanoisin kuitenkin, että kyse on BMO-T:stä jalkautuminen. Kuvattu tuolla aikaisemmassa viestissä.[/URL]
Sotasaalisaseet ja niiden käyttöönotto[/URL]'][URL='http://[URL="http://maanpuolustus.net/threads/sotasaalisaseet-ja-niiden-k%C3%A4ytt%C3%B6%C3%B6notto.4194/page-19#post-327130"]Sotasaalisaseet ja niiden käyttöönotto[/URL]'][URL='http://[URL="http://maanpuolustus.net/threads/sotasaalisaseet-ja-niiden-k%C3%A4ytt%C3%B6%C3%B6notto.4194/page-19#post-327130"]Sotasaalisaseet ja niiden käyttöönotto[/URL]']Sotasaalisaseet ja niiden käyttöönotto'][URL='http://[URL="http://maanpuolustus.net/threads/sotasaalisaseet-ja-niiden-k%C3%A4ytt%C3%B6%C3%B6notto.4194/page-19#post-327130"]Sotasaalisaseet ja niiden käyttöönotto[/URL]']Sotasaalisaseet ja niiden käyttöönotto']Mutta ketterää ja nopeaa, kyllä :rolleyes:. Noitahan ei ole paljon valmistettu.[/URL][/URL][/URL][/URL]
[URL='http://[URL="http://maanpuolustus.net/threads/sotasaalisaseet-ja-niiden-k%C3%A4ytt%C3%B6%C3%B6notto.4194/page-19#post-327130"]Sotasaalisaseet ja niiden käyttöönotto[/URL]'][URL='http://[URL="http://maanpuolustus.net/threads/sotasaalisaseet-ja-niiden-k%C3%A4ytt%C3%B6%C3%B6notto.4194/page-19#post-327130"]Sotasaalisaseet ja niiden käyttöönotto[/URL]'][URL='http://[URL="http://maanpuolustus.net/threads/sotasaalisaseet-ja-niiden-k%C3%A4ytt%C3%B6%C3%B6notto.4194/page-19#post-327130"]Sotasaalisaseet ja niiden käyttöönotto[/URL]']
Sotasaalisaseet ja niiden käyttöönotto[/URL]']

[URL='http://[URL="http://maanpuolustus.net/threads/sotasaalisaseet-ja-niiden-k%C3%A4ytt%C3%B6%C3%B6notto.4194/page-19#post-327130"]Sotasaalisaseet ja niiden käyttöönotto[/URL]'][URL='http://[URL="http://maanpuolustus.net/threads/sotasaalisaseet-ja-niiden-k%C3%A4ytt%C3%B6%C3%B6notto.4194/page-19#post-327130"]Sotasaalisaseet ja niiden käyttöönotto[/URL]']BMO-T:stä ja BMD-sarjasta jalkautuminen lienee aika identtistä?



Edit: En tiedä miksi tämä systeemi lisää omiaan minun viestiin...[/URL][/URL][/URL][/URL][/URL][/URL]

Jäin miettimään, että jokuhan noissa on oltava vikana, kun noin vähän ovat niitä tehneet. Siis 15-24 kpl, jos pitää paikkansa. Siis näyttäähän se videolta maailmanlopun aseelta, mutta voisin kuvitella, että kerää myös tulta puoleensa, jos viedään etulinjaan suorasuuntausetäisyyksille.
Ja miten vaikuttaa tykistön isku tuollaisen ympärillä? Leimahtaako ammo?

Jäin miettimään, että jokuhan noissa on oltava vikana, kun noin vähän ovat niitä tehneet. Siis 15-24 kpl, jos pitää paikkansa. Siis näyttäähän se videolta maailmanlopun aseelta, mutta voisin kuvitella, että kerää myös tulta puoleensa, jos viedään etulinjaan suorasuuntausetäisyyksille.
Ja miten vaikuttaa tykistön isku tuollaisen ympärillä? Leimahtaako ammo?

Ukrainassa ovat käyttäneet noita todella tuhoisin vaikutuksin (lähde: Potomac Foundation:in raportti). Noita on myös käytetty "cocktailina" Gradien/Uraganien kanssa (lähde: sama) siten että maalialueelle sataa yhtäaikaa termobaarisia ja sirpalekärkiä. Siinä voi vastaanottavassa päässä tulla äkkiä mieleen että olisi vastatykistötuli aika kova sana.

Silmiinpistävä rajoite noissa on mielestäni kantomatka, monissa lähteissä sanotaan kantomatkaksi vain 6 km.

Nona-SVK. 120-millisellä pääaseella varustettu krh-ajoneuvo. Perustuu BTR-80:n runkoon. Tarkoitettu moottoroiduille divisioonille. Ekat toimitukset 90-luvulla, ja tämän lähteen mukaan niitä olisi käytössä n. 50 kpl.
Eli ylempänä mainittu huomattavasti yleisempi S-versio, joka siis perustuu BMD-1:n runkoon, on selkeästi katsottu paremmaksi. Täyttö 30 peruslaakia, 4 hengen miehistö.
Front armor of the Nona-SVK provides protection against 12.7-mm projectiles. All-round protection is against 7.62-mm armor-piercing rounds and artillery shell splinters.
http://www.military-today.com/artillery/2s23_nona_svk.htm



Maximum range of fire is 8.85 km with ordinary projectiles, 12.8 km with rocket assisted projectiles and 7.15 km with mines. Some sources claim, that a HE-FRAG projectile of the 2S23 is as effective as a standard 152-mm howitzer projectile. Its armor-piercing round penetrates 600 - 650 mm steel plate at 1 000 m range. The 2S23 Nona-SVK is also compatible with the Kitolov-2 precision guided munitions.
http://www.armyrecognition.com/russ...rier_technical_data_sheet_specifications.html
